Higress E2E Tests

Higress e2e tests are mainly focusing on two parts for now:

• Conformance Test for Ingress API
• Conformance Test for Gateway API

Ingress APIs Conformance Tests

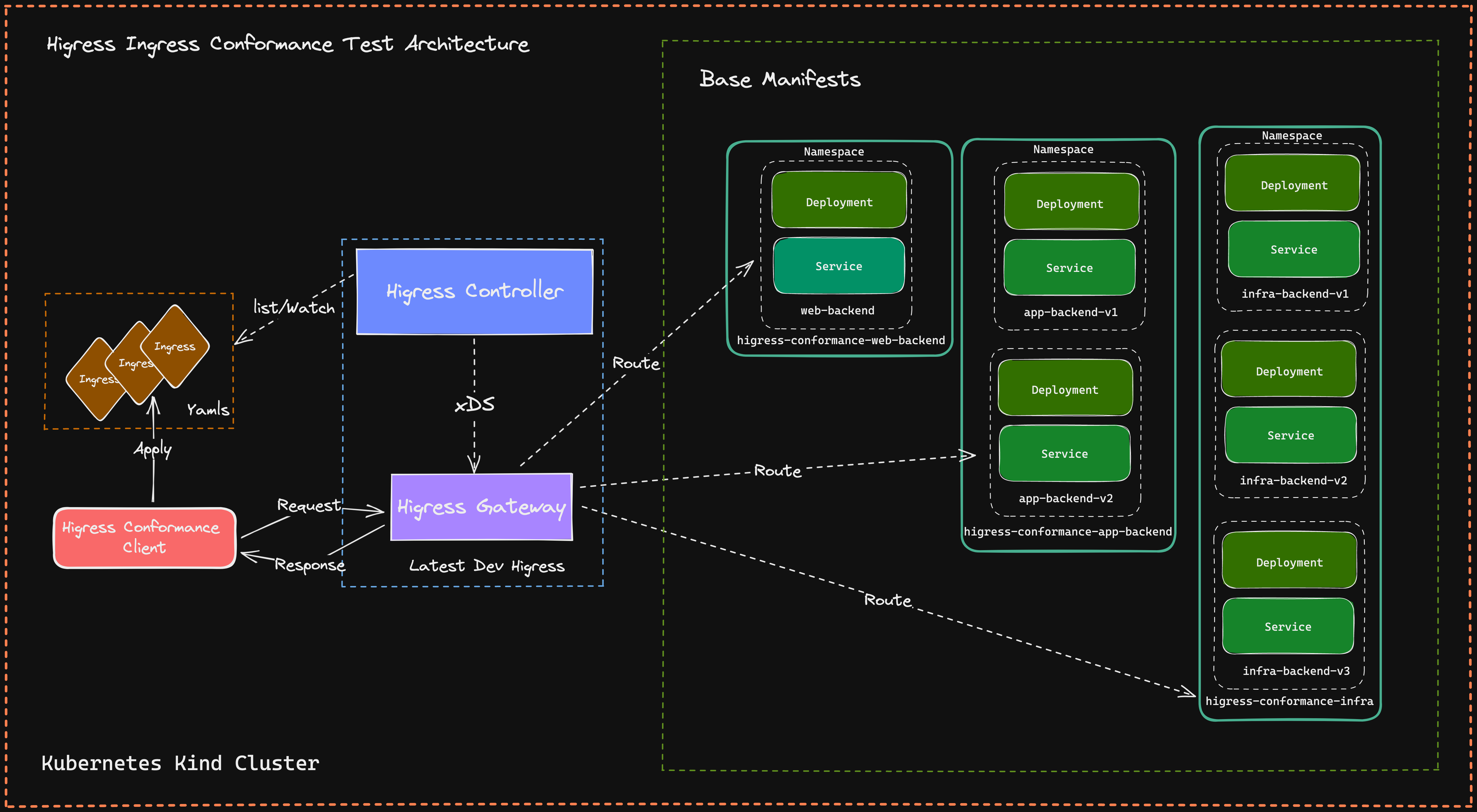

Architecture

Workflow

Higress provides make target to run ingress api conformance tests and wasmplugin tests,

• API Tests: make higress-conformance-test
• Gateway API Tests: make gateway-conformance-test
• WasmPlugin Tests: make higress-wasmplugin-test
  • Build all Go WasmPlugins for testing: make higress-wasmplugin-test
  • Build tests for a specific Go WasmPlugin only: PLUGIN_NAME=request-block make higress-wasmplugin-test
  • Build tests for a specific C++ WasmPlugin only: PLUGIN_TYPE=CPP PLUGIN_NAME=key_auth make higress-wasmplugin-test
  • Build all Rust WasmPlugins for testing: PLUGIN_TYPE=RUST make higress-wasmplugin-test
  • Build tests for a specific Rust WasmPlugin only: PLUGIN_TYPE=RUST PLUGIN_NAME=request-block make higress-wasmplugin-test
  • Run specific tests only (separated by commas): TEST_SHORTNAME=WasmPluginsIPRestrictionAllow,WasmPluginsIPRestrictionDeny make higress-wasmplugin-test
  • Build a specific Go WasmPlugin and run selected tests only: PLUGIN_NAME=ip-restriction TEST_SHORTNAME=WasmPluginsIPRestrictionAllow,WasmPluginsIPRestrictionDeny make higress-wasmplugin-test
  • Skip building the higress dev image, build only a specific Go WasmPlugin and run selected tests: PLUGIN_NAME=ip-restriction TEST_SHORTNAME=WasmPluginsIPRestrictionAllow,WasmPluginsIPRestrictionDeny make higress-wasmplugin-test-skip-docker-build

It can be divided into below steps:

1. delete-cluster: checks if we have undeleted kind cluster.
2. create-cluster: create a new kind cluster.
3. docker-build: build a dev image of higress.
4. kube-load-image: load dev higress-controller image it into kind cluster.
5. install-dev: install higress-controller with dev image, and latest higress-gateway, istiod with helm.
6. run-e2e-test:
   1. Setup conformance suite, like define what conformance tests we want to run, in e2e_test.go / higressTests Slice. Each case we choose to open is defined in test/ingress/conformance/tests.
   2. Prepare resources and install them into cluster, like backend services/deployments.
   3. Load conformance tests we choose to open in e2e_test.go / higressTests Slice, and run them one by one, fail if it is not expected.

How to write a test case

To add a new test case, you firstly need to add xxx.go and xxx.yaml in test/ingress/conformance/tests. xxx.yaml is the Ingress resource you need to apply in the cluster, xxx.go defines the HigressConformanceTest.

And after that, you should add your defined HigressConformanceTest to e2e_test.go / higressTests Slice.

You can understand it quickly just by looking at codes in test/ingress/conformance/tests/httproute-simple-same-namespace.go and test/ingress/conformance/tests/httproute-simple-same-namespace.yaml, and try to write one.

How to Implement Test Environment Reusability

The test environment reusability is primarily achieved through the following targets in the Makefile:

1. make higress-conformance-test: Used to run the entire Conformance testing process, including setting up the test environment, executing test cases, and cleaning up the test environment.

   • make higress-conformance-test-prepare: Can be used to set up the environment for deployments such as higress-controller, higress-gateway, etc.
   • make run-higress-e2e-test: Used to run the test cases.
     • make run-higress-e2e-test-setup: Can be used to install the basic resources required for the test cases, such as nacos, dubbo, etc.
     • make run-higress-e2e-test-run: Used to execute the test cases.
     • make run-higress-e2e-test-clean: Can be used to clean up the basic resources installed during the setup phase of the test cases.
   • make higress-conformance-test-clean: Used to clean up the test environment for deployments like higress-controller, higress-gateway, etc.

2. make higress-wasmplugin-test: Used to run the entire WasmPlugin testing process, including setting up the test environment, compiling WasmPlugin plugins, executing test cases, and cleaning up the test environment. Using make higress-wasmplugin-test-skip-docker-build can skip building the higress dev image.

   • make higress-wasmplugin-test-prepare: Can be used to set up the environment for deployments such as higress-controller, higress-gateway, and compile WasmPlugin plugins. Using make higress-wasmplugin-test-prepare-skip-docker-build can skip building the higress dev image.
   • make run-higress-e2e-test-wasmplugin: Used to run the test cases.
     • make run-higress-e2e-test-wasmplugin-setup: Can be used to install the basic resources required for the test cases, such as nacos, dubbo, etc.
     • make run-higress-e2e-test-wasmplugin-run: Used to execute the test cases.
     • make run-higress-e2e-test-wasmplugin-clean: Can be used to clean up the basic resources installed during the setup phase of the test cases.
   • make higress-wasmplugin-test-clean: Used to clean up the test environment for deployments like higress-controller, higress-gateway, etc.

Gateway APIs Conformance Tests

Run make gateway-conformance-test to execute the upstream Gateway API v1.4.0 Conformance Suite. The default scope is the required GATEWAY-HTTP Core profile (Gateway, HTTPRoute, and ReferenceGrant); Extended features are not enabled.

The runner imports the upstream suite and its embedded manifests directly, so Higress does not maintain copies of official test cases. Set GATEWAY_CONFORMANCE_RUN_TEST=<ShortName> only when debugging one upstream test. The default PR workflow always runs the complete Core profile and stores the generated report as a CI artifact.
